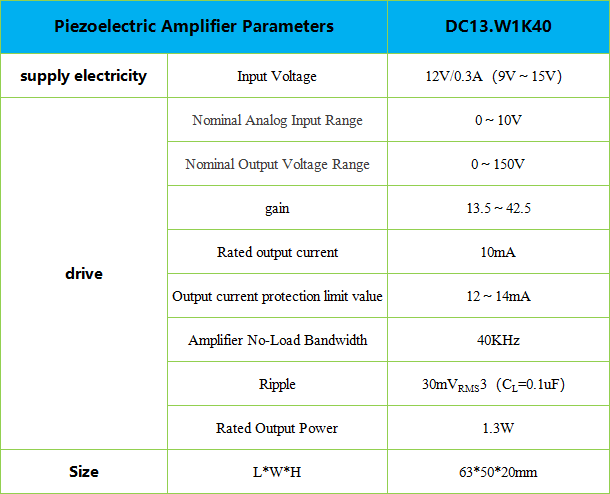

DC13.W1K40, with its 40kHz high bandwidth, adjustable gain design, and compact form factor, offers a flexible and reliable solution for piezoelectric drive systems requiring fast response and high dynamic precision. It is particularly well-suited for high-frequency driving, dynamic deformation control, and high-sensitivity load driving applications.

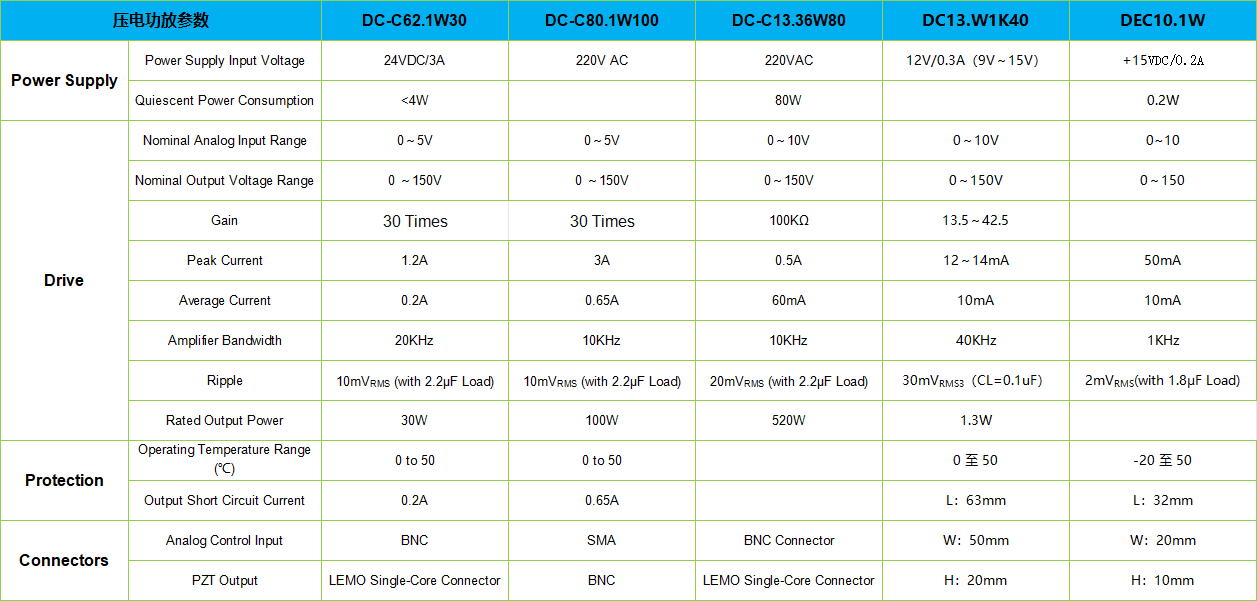

1. Structural Design

●Compact Single-Channel Layout: Dimensions of only 63×50×20mm, with a small footprint, facilitating integration into standard instrument chassis or embedded systems.

●Simplified Interface Design: Utilizes pin-type or terminal block interfaces, supporting 12V power supply and analog signal input, compatible with mainstream control systems.

●Natural Heat Dissipation Structure: Optimized for low-to-medium power applications, requiring no active fan cooling, making it suitable for low-noise, high-density integration environments.

2. Material Properties

●High-Bandwidth Output Capability: No-load bandwidth reaches 40kHz (-3dB), meeting the requirements for high-frequency response and fast dynamic adjustment.

●Low-Ripple Output Design: Output ripple ≤30mVRMS under a 0.1μF capacitive load, ensuring stable driving for noise-sensitive loads.

●Wide Input Compatibility: Supports gain adjustment (13.5 to 42.5 times), compatible with different input signal ranges such as 0–3V or 0–10V.

3. Core Advantages

●High Dynamic Response Performance: Bandwidth up to 40kHz, suitable for applications such as high-speed scanning, fast positioning, and dynamic waveform tracking.

●Flexible Gain Adjustment: Users can flexibly configure the gain factor based on the preceding stage signal, eliminating the need for additional signal conditioning circuits.

●Output Protection and Auto-Recovery: Integrated current protection mechanism (limit value 12–14mA). In the event of a short circuit or overcurrent, the output is automatically切断 and attempts to recover after a short period, enhancing system robustness.

●Stable High-Voltage Output: Supports an output voltage range of 0–150V with a rated output current of 10mA, suitable for most piezoelectric ceramics and capacitive loads.

4. Typical Applications

●High-Frequency Piezoelectric Driving: Used in high-speed scanning probe microscopes (SPM), fast servo valves, high-frequency shaker tables, and similar scenarios.

●Dynamic Deformation Control: Suitable for piezoelectric deformable mirrors, active optical elements, dynamic focusing systems, etc.

●Precision Positioning and Scanning: Drives piezoelectric nano-positioning stages and high-speed positioning platforms, enabling high-bandwidth trajectory tracking.

●Research and Testing Equipment: Integrated into material testing systems, high-frequency excitation devices, ultrasonic transducer drives, and more.

5. Usage and Support Notes

●Load Type Restriction: This product is designed solely for driving capacitive loads (e.g., piezoelectric ceramics). Do not use it to drive inductive loads to avoid product damage.

●Protection Mechanism Description: When the output current reaches the protection limit, the driver rapidly切断 the output and attempts to restore it after a short period. If a sustained short circuit condition persists, the driver will enter a hiccup mode.

●Heat Dissipation and Installation Recommendations: During continuous high-bandwidth or high-load operation, ensure adequate ventilation or appropriate heat dissipation measures around the product to maintain long-term stability.

●Gain Adjustment Tips: Before adjusting the gain, verify the input signal range and required output voltage to avoid exceeding the withstand voltage of the piezoelectric element.

●Reliability and Support: Typical application wiring diagrams and gain configuration instructions are provided. Custom parameter options and system integration guidance are available upon request.
