Multilayer Stack Piezoelectric Ceramics: The Core Component of Smart Sensors

Multilayer Stack Piezoelectric Ceramics: The Core Component of Smart Sensors

In an era of ubiquitous connectivity and global intelligent transformation, sensors serve as the "electronic senses" for perceiving the world, and their importance is self-evident. From precision medical equipment to sophisticated industrial robots, from automotive active safety systems to haptic feedback in consumer electronics, smart sensors are everywhere. At the "heart" of these high-performance sensors, a key component often pulses – the Multilayer Stack Piezoelectric Ceramic.

As a leading piezoelectric ceramic solutions provider in China, Guangdong Deci Technology Co., Ltd. is consistently committed to exploring the potential of this core material. With our exceptional manufacturing expertise, we provide powerful momentum for the intelligent upgrade across various industries.

I. What are the Piezoelectric Effect and Multilayer Stack Structure?

To understand Multilayer Stack Piezoelectric Ceramics, we must first grasp the "Piezoelectric Effect." This is a remarkable physical phenomenon: when specific ceramic materials (like Lead Zirconate Titanate, PZT) are subjected to mechanical pressure, they generate an electrical charge across their ends (Direct Piezoelectric Effect). Conversely, when an electric field is applied, they undergo minute physical deformation (Inverse Piezoelectric Effect). This efficient conversion between electrical and mechanical energy forms the foundation for all piezoelectric ceramic applications.

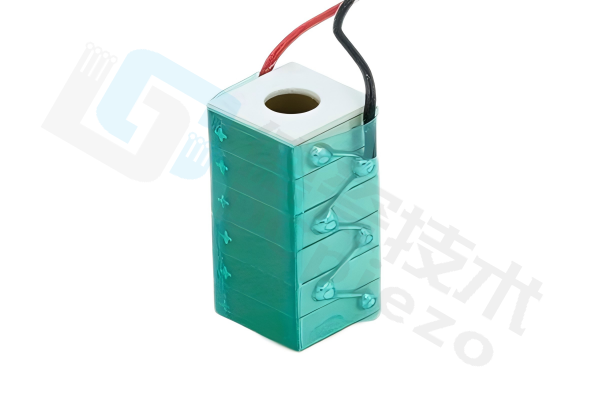

However, a single layer of piezoelectric ceramic offers limited displacement or force output, often insufficient for high-precision applications. Thus, "Multilayer Stack" technology emerged. As the name implies, Multilayer Stack Piezoelectric Ceramics are fabricated by co-firing dozens or even hundreds of extremely thin piezoelectric ceramic layers at high temperatures. These layers are interconnected through precisely arranged internal electrodes. This structural design delivers two revolutionary advantages:

1. Low Voltage Drive, High Displacement Output: Under the same voltage, the total displacement of the stack is the sum of the displacements of each individual layer. This enables precise displacement outputs in the micrometer range or higher, achievable with drive voltages typically between several dozen and just over one hundred volts.

2.High Force Output and High Response Frequency: The stack structure possesses high rigidity and load-bearing capacity, enabling force outputs ranging from tens of Newtons to several thousand Newtons or even higher. Simultaneously, thanks to high energy conversion efficiency, response times can reach microsecond or even nanosecond levels, facilitating very high-frequency reciprocating motion.

It is this meticulous structural design, where minute details make the critical difference, that establishes Multilayer Stack Piezoelectric Ceramics as the premier choice for precision actuation and sensing applications.

II. Why is it the Core of Smart Sensors?

The "intelligence" of a smart sensor lies in its ability not only to perceive information but also to process and respond to it rapidly and accurately. Multilayer Stack Piezoelectric Ceramics, leveraging their unique properties, play multiple core roles in this process.

1.As a Highly Sensitive "Sensor"

Based on the Direct Piezoelectric Effect, when stack ceramics are subjected to weak external pressure, vibration, or shock, they instantly generate a detectable electrical signal. This high sensitivity makes them ideal for:

● Vibration and Acceleration Sensors: Widely used in automotive engine control, airbag deployment triggers, and industrial equipment condition monitoring, capable of accurately detecting the slightest abnormal vibrations.

● Ultrasonic Sensors: In medical ultrasound imaging and industrial non-destructive testing, they serve as receiving elements, efficiently converting returning ultrasonic waves into electrical signals.

● Force and Pressure Sensors: Used for robotic tactile sensing, enabling grippers to "feel" and gauge grip force.

2.As a Precision "Actuator"

Based on the Inverse Piezoelectric Effect, stack ceramics can achieve nanometer-level precise displacement according to electrical command signals. This is crucial in sensor systems for:

● Active Vibration Control: In precision machining and optical stabilization platforms, they generate real-time counter-displacements to cancel external vibrations, maintaining extreme system stability.

● Micro-Flow Valve and Printhead Control: In biochips, precision spraying, and 3D printing, they enable precise control of fluids or droplets, achieving picoliter or even femtoliter accuracy.

● Focus Adjustment and Optical Alignment: In high-end cameras and optical communication equipment, they allow rapid, fine-tuning of lens positions for instant focusing and optical path calibration.

3.As an Integrated "Sense-Actuate Unit"

In cutting-edge applications, a single Multilayer Stack Piezoelectric Ceramic element can perform both sensing and actuation functions simultaneously. For instance, in adaptive systems, it can first act as an actuator to generate movement, and subsequently function as a sensor to monitor the outcome of that action (such as the reaction force encountered), forming a closed-loop control. This self-sensing capability significantly enhances system integration, response speed, and intelligence.

III. Guangdong Deci's Technical Advantages: Infusing "Soul" into Smart Sensing

Manufacturing a high-quality Multilayer Stack Piezoelectric Ceramic component is challenging. Its performance directly determines the sensor's accuracy, reliability, and lifespan. Guangdong Deci Technology Co., Ltd., with years of industry experience, has accumulated core advantages in materials, processes, and engineering:

● Advanced Material Formulation: We possess independently developed PZT ceramic powder formulations. Through precise control of doping elements and sintering processes, we ensure our ceramic materials exhibit high piezoelectric constants (d33), large electromechanical coupling coefficients (kp), and excellent temperature stability, guaranteeing high performance from the source.

● Precision Multilayer Co-firing Technology: This is the core of manufacturing. We employ tape casting to stably produce extremely uniform ceramic green tapes with thicknesses of only several tens of micrometers. Utilizing precise printing, lamination, and high-temperature co-firing technologies, we ensure hundreds of ceramic layers and internal electrodes bond densely and defect-free after sintering, resulting in high reliability and long service life.

● Comprehensive Performance Testing and Aging Screening: Every batch of our stack products undergoes rigorous performance testing, including displacement-voltage characteristics, capacitance, loss, and insulation resistance. Through high-electric field "aging" processes, we pre-eliminate early failure products, ensuring every piezoelectric stack delivered to customers possesses outstanding stability and consistency.

● Powerful Customization Capability: We understand that different sensing applications have unique requirements for parameters like size, displacement, force, and capacitance of piezoelectric stacks. Guangdong Deci possesses strong R&D and engineering capabilities, enabling us to provide one-stop customized services – from material selection and structural design to packaging solutions – based on specific customer needs, becoming our clients' most trusted technical partner.

IV. Future Outlook: Resonating with the Intelligent Era

With the rapid development of Artificial Intelligence, the Internet of Things, biomedical fields, and more, demands on smart sensors will intensify: smaller size, higher precision, greater energy efficiency, and enhanced intelligence. Multilayer Stack Piezoelectric Ceramic technology is also evolving towards miniaturization, higher layer counts, lead-free (eco-friendly) compositions, and deeper integration with MEMS (Micro-Electro-Mechanical Systems). Guangdong Deci Technology Co., Ltd. will remain at the technological forefront, continuously investing in R&D and pushing the boundaries of materials and processes. We look forward to collaborating with partners from all sectors to explore further possibilities for Multilayer Stack Piezoelectric Ceramics in smart sensing. With our precise "core components," we aim to contribute solid strength to empowering the intelligence of countless devices and to creating a better future.

Guangdong Deci Technology Co., Ltd. – Precision through Expertise, Piezoelectric Driving the Future.
