Multi-Layer Stacked Piezoelectric Ceramics: Driving Intelligent Manufacturing and Green Energy Development

Multi-Layer Stacked Piezoelectric Ceramics: Driving Intelligent Manufacturing and Green Energy Development

In recent years, with the accelerated intelligent transformation of global manufacturing and the surging demand for green energy, piezoelectric ceramic technology—an “invisible champion” in the field of critical functional materials—is embracing unprecedented opportunities. Among these, multi-layer stacked piezoelectric ceramics, with their advantages in high precision, reliability, and energy conversion efficiency, have emerged as a core force driving the upgrade of intelligent manufacturing and breakthroughs in clean energy technologies. As a leading manufacturer in this field, we deeply recognize their technological value and market potential, and are committed to advancing industry progress through innovative R&D.

I. Multi-Layer Stacked Piezoelectric Ceramics: Technical Principles and Structural Innovation

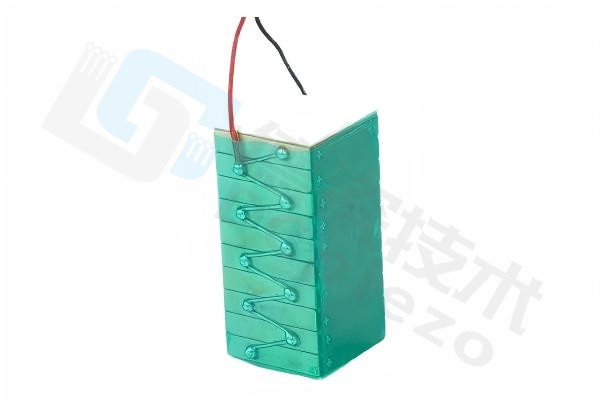

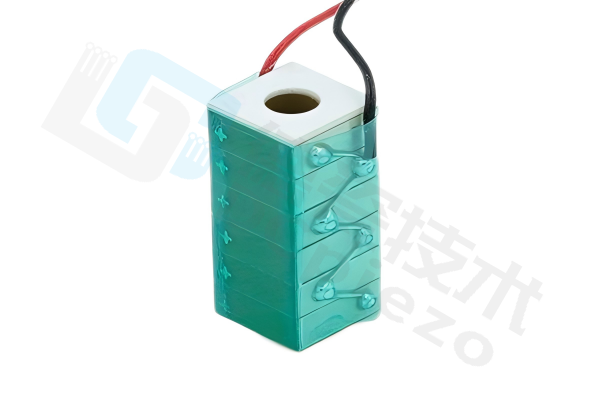

Piezoelectric ceramics are smart materials capable of converting mechanical energy into electrical energy and vice versa, widely used in sensors, actuators, and energy harvesting devices. The multi-layer stacked structure, which involves alternately stacking dozens to hundreds of ultra-thin piezoelectric ceramic layers and integrating them through co-firing processes, significantly enhances the performance limits of traditional single-layer piezoelectric ceramics:

●Multiplied Displacement Output: Under the same voltage, the superposition effect of multi-layer structures enables micron- or even nanometer-level precision displacement, meeting stringent control requirements.

●Reduced Driving Voltage: By minimizing single-layer thickness and optimizing electrode design, operating voltage can be reduced to 1/10 of traditional ceramics, enhancing safety and lowering energy consumption.

●Optimized Response Speed and Lifespan: Multi-layer stacking reduces mechanical hysteresis effects, achieving kilohertz-level response frequencies and improving fatigue resistance by several times.

This technological innovation not only breaks the performance bottlenecks of traditional piezoelectric devices but also enables their application in complex industrial scenarios and extreme environments.

II. Empowering Intelligent Manufacturing: The Core Engine of Precision Control and Efficient Production

In the Industry 4.0 era, intelligent manufacturing imposes rigorous demands on equipment precision, speed, and reliability. Leveraging their unique properties, multi-layer stacked piezoelectric ceramics are becoming a “technological catalyst” in the following areas:

●Precision Manufacturing and Micro-Machining

In semiconductor lithography machines, high-precision CNC equipment, and similar devices, multi-layer piezoelectric ceramic actuators enable precise control of lens displacement or tool feed, achieving nanometer-level machining accuracy. For example, in wafer dicing processes, their rapid response characteristics can improve processing efficiency by over 30% while reducing material waste.

●Flexible Upgrades for Industrial Robots

Traditional robotic arms rely on motor-driven systems, which suffer from high inertia and slow response. Flexible joints integrated with piezoelectric ceramic drivers enable millisecond-level dynamic adjustments, granting robots exceptional operational sensitivity and adaptability—ideal for precision scenarios like electronics assembly and medical surgeries.

●Intelligent Sensing and Predictive Maintenance

Vibration sensors based on the piezoelectric effect can monitor equipment operating status in real time, analyzing high-frequency signals to preemptively warn of mechanical failures. After adopting such systems in an automotive production line, equipment downtime decreased by 45%, and maintenance costs were reduced by over 20%.

III. Advancing Green Energy: A Key Material for Clean Technology Innovation

Under the “Dual Carbon” goals (carbon peaking and carbon neutrality), the value of multi-layer stacked piezoelectric ceramics in the renewable energy sector is increasingly prominent:

●Wind Power Efficiency Enhancement

Traditional wind turbine pitch systems rely on hydraulic drives, which pose oil leakage risks and high maintenance costs. Piezoelectric ceramic-driven electric pitch systems enable rapid blade angle adjustments in high-wind environments, increasing power generation efficiency by over 15% while achieving zero-pollution operation.

●Environmental Energy Harvesting Systems

By converting mechanical energy from road vibrations, human motion, and other environmental sources into electricity, piezoelectric ceramics can provide continuous power for IoT devices and wireless sensors. For instance, in a smart city project, piezoelectric road surfaces harvested over 1,000 kilowatt-hours (kWh) of electricity annually, reducing carbon emissions by approximately 800 kg.

●Breakthroughs in New Energy Vehicle Technology

In hydrogen fuel cell vehicles, piezoelectric ceramic pumps precisely control hydrogen supply flow rates. In electric vehicles, their high-precision ultrasonic sensors enhance the reliability of battery health monitoring systems, extending battery lifespan by more than 20%.

IV. Future Outlook: Technological Convergence and Sustainable Development

With the convergence of materials science, additive manufacturing, and AI technologies, multi-layer stacked piezoelectric ceramics will unlock even broader possibilities:

●Material Innovation: Accelerated R&D in lead-free piezoelectric ceramics ensures compliance with environmental standards like EU RoHS.

●Process Advancements: 3D printing enables integrated molding of complex stacked structures, further reducing costs.

●Intelligent Integration: Adaptive control systems embedded with AI algorithms will unlock full-scenario application potential.

As an industry leader, we are accelerating technological iteration through industry-academia collaborations, dedicated to providing high-performance, cost-effective solutions for global clients and fostering the synergistic development of intelligent manufacturing and the green economy.

From serving as the “invisible hand” of precision manufacturing to acting as an “innovation fulcrum” for green energy, multi-layer stacked piezoelectric ceramics are reshaping the future of industrial and energy technologies. As global supply chains increasingly prioritize high-efficiency and low-carbon solutions, this field is poised for even more vigorous growth. As a core supplier, we will anchor our efforts in technological innovation, partnering with stakeholders to drive industrial upgrades and inject robust momentum into sustainable development.
